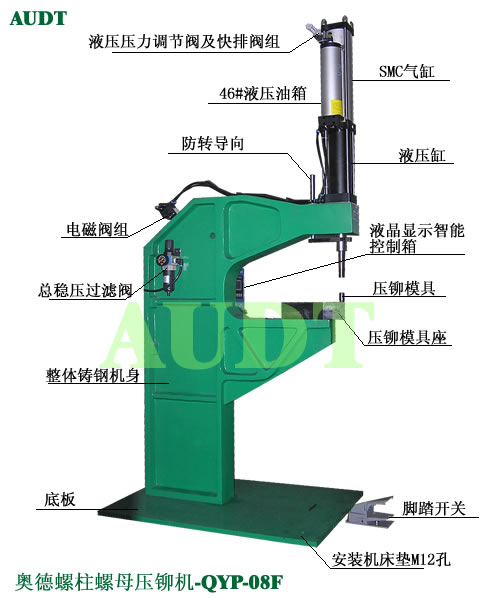

Type of the equipment QYP-06

Technical parameter

技術參數

Output working pressure the most greatly

( 大輸出工作壓力 )

60KN （ 6T ）/80KN (8T)

The equipment needs introduction to compress the pressure of the air

設備需輸入壓縮空氣的壓力

0.6MPa

The main shaft puts the level and workingbench centre distance at the time of the initial state

初始狀态時主軸下平面與工作檯中心距離

150mm~200mm

喉口深度 (mm)

500mm / 700mm

The greatest journey of the main shaft

主軸大行程

100mm / 150mm

Keep the time of the invariable pressure

保持恒定壓力的時間

0~99 Second

Heighten the strength pressure journey most

大增力壓力行程

6，10，15，20mm

The equipment uses the voltage of the power

設備使用電源電壓

220V Alternating current

50HZ

Mesa measurement of the table

工作檯面尺寸

180*70*90mm

Mould handle hole measurement of the mould that the main shaft is installed

主軸裝上模模柄孔尺寸

￠ 20mm × 35mm

Diameter of the main shaft

主軸直徑

￠ 35mm

Control method of the safety in operation

操作控製方式

腳踏控製
